The P0841 trouble code is an OBD-II diagnostic code that indicates an issue with the transmission fluid pressure sensor or its circuit, often affecting the vehicle’s transmission performance and shifting behavior. This article provides a comprehensive analysis of P0841, covering its definition, causes, symptoms, diagnostic steps, and solutions. Supported by real-world case studies—such as issues in the Chrysler 300 and other models—this guide offers practical insights for vehicle owners and technicians to effectively resolve this fault.

1. What is P0841?

P0841 is an OBD-II diagnostic trouble code (DTC) defined as "Transmission Fluid Pressure Sensor/Switch A Circuit Range/Performance." It indicates that the Transmission Control Module (TCM) or Engine Control Module (ECM) has detected a problem with the transmission fluid pressure sensor/switch "A" circuit, where the signal is either out of the expected range or not performing as anticipated. The transmission fluid pressure sensor monitors hydraulic pressure within the transmission, which is critical for controlling gear shifts and ensuring proper operation.

Role of the Transmission Fluid Pressure Sensor

The transmission fluid pressure sensor, often located inside the transmission or on the valve body, measures the hydraulic pressure of the transmission fluid. The TCM/ECM uses this data to regulate shift points, line pressure, and clutch engagement. The "A" designation typically refers to the primary pressure sensor in systems with multiple sensors. The P0841 code suggests that the sensor’s signal is erratic, stuck, or outside the normal range (e.g., 0.5-4.5V), impairing the TCM/ECM’s ability to manage the transmission effectively.

Common Trigger Conditions

• The transmission fluid pressure sensor signal is outside the expected range (e.g., too high, too low, or inconsistent).
• Inconsistent or erratic signal performance from the sensor.
• Electrical or mechanical issues affecting sensor operation or transmission pressure.

2. Potential Causes and Specific Issues of P0841

P0841 can stem from various factors. Below is a detailed list of common causes, supported by real-world examples:

• (1) Faulty Transmission Fluid Pressure Sensor
  Issue: The transmission fluid pressure sensor is defective, sending an out-of-range or inconsistent signal.
  Example: In a 2016 Chrysler 300, the P0841 code was triggered because the transmission fluid pressure sensor failed, sending a constant 0V signal.
  Cause: Wear from prolonged exposure to heat, vibration, or fluid contamination.
• (2) Wiring or Connector Issues
  Issue: Damaged, shorted, or corroded wiring in the transmission fluid pressure sensor circuit affects signal integrity.
  Example: A 2017 Ford F-150 exhibited P0841 due to a corroded connector near the transmission, causing an erratic sensor signal.
  Cause: Exposure to moisture, road salt, or heat.
• (3) Low or Dirty Transmission Fluid
  Issue: Low fluid levels or contaminated transmission fluid causes abnormal pressure readings.
  Example: A 2015 Toyota Camry triggered P0841 because of low transmission fluid, leading to incorrect pressure sensor readings.
  Cause: Fluid leaks or lack of maintenance (e.g., not changing fluid per schedule).
• (4) Internal Transmission Issues
  Issue: Problems within the transmission, such as a clogged valve body or failing pressure regulator, cause actual pressure deviations.
  Example: A 2018 Honda Odyssey had P0841 due to a clogged valve body passage, affecting hydraulic pressure.
  Cause: Wear or debris buildup in the transmission.
• (5) TCM/ECM Software or Hardware Issues
  Issue: The TCM or ECM fails to process the transmission fluid pressure sensor signal correctly or has an internal fault.
  Example: A 2019 Nissan Altima showed P0841 due to a TCM software glitch, resolved with a firmware update.
  Cause: Outdated software or TCM/ECM hardware failure.

3. Symptoms of P0841

Symptoms of P0841 are often related to transmission performance and shifting behavior. Here are common signs and their associated causes:

• Check Engine Light On
  Symptom: MIL illuminates on the dashboard.
  Cause: TCM/ECM detects a range/performance issue with the transmission fluid pressure sensor circuit.
• Harsh or Erratic Shifting
  Symptom: Transmission shifts harshly, slips, or shifts unpredictably.
  Cause: Incorrect pressure readings disrupt shift timing and clutch engagement.
• Transmission Stuck in Gear
  Symptom: Transmission fails to shift out of a specific gear (e.g., stuck in "limp mode").
  Cause: TCM enters a failsafe mode due to unreliable pressure data.
• Delayed Engagement
  Symptom: Delay when shifting from Park to Drive or Reverse.
  Cause: Improper pressure regulation affects clutch engagement.
• Reduced Fuel Economy
  Symptom: Increased fuel consumption.
  Cause: Inefficient transmission operation due to incorrect pressure control.

4. Vehicles Prone to P0841 and Case Studies

P0841 is common in vehicles with automatic transmissions, particularly those with high mileage or neglected transmission maintenance. Below are notable examples:

• Chrysler 300 (2015-2020)
  Issue: Failed transmission fluid pressure sensor.
  Symptom: Harsh shifting and MIL on.
• Ford F-150 (2015-2020)
  Issue: Corroded connector in the sensor circuit.
  Symptom: Erratic shifting and delayed engagement.
• Toyota Camry (2014-2019)
  Issue: Low transmission fluid.
  Symptom: Transmission stuck in gear and MIL on.
• Honda Odyssey (2014-2019)
  Issue: Clogged valve body passage.
  Symptom: Slipping shifts and reduced fuel economy.
• Nissan Altima (2013-2019)
  Issue: TCM software glitch.
  Symptom: MIL on with intermittent shifting issues.

5. Steps to Diagnose P0841

Diagnosing P0841 requires a systematic approach. Follow these steps:

Step 1: Read Trouble Codes and Data Stream

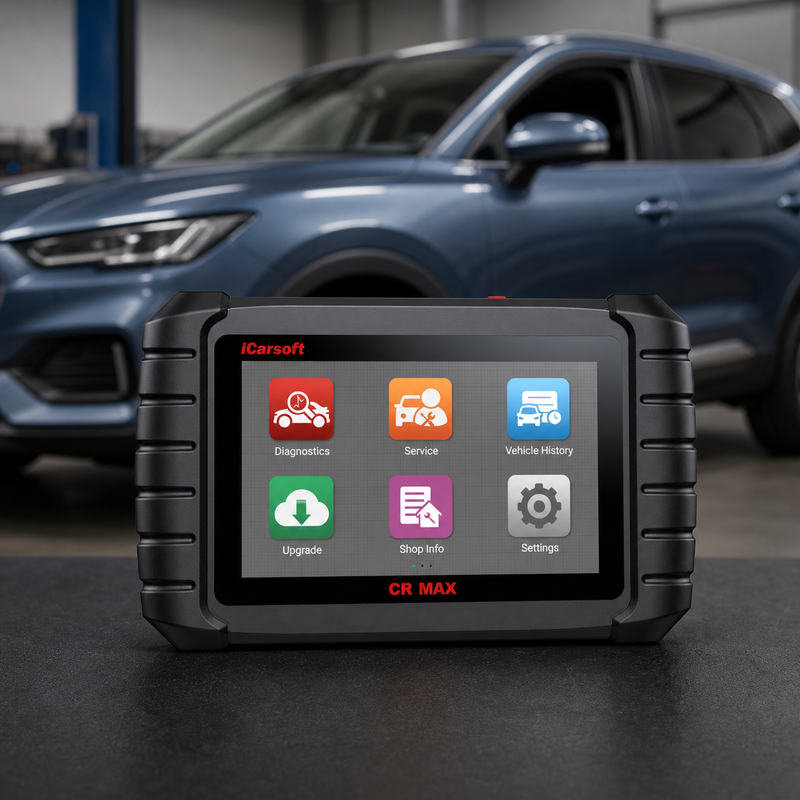

Tool: OBD-II scanner (e.g., CR MAX).
Action: Connect to the OBD-II port, retrieve P0841 and related codes, and monitor live data.
Key Data:

1. 1. Transmission fluid pressure: Should vary with gear and engine load (e.g., 50-300 psi).
   2. Sensor voltage: Should range from 0.5V (low pressure) to 4.5V (high pressure).

Example: The Chrysler 300 showed a fixed 0V reading from the pressure sensor.

Step 2: Check Transmission Fluid Level and Condition
Action:

1. 1. Check fluid level using the dipstick (if equipped) or service port.
   2. Inspect fluid condition: Should be red and clean, not burnt or contaminated.

Example: The Camry’s fluid was low and burnt, indicating a need for a fluid change.

Step 3: Visual Inspection
Checkpoints:

1. 1. Transmission fluid pressure sensor and connector: Look for damage or corrosion.
   2. Wiring harness: Check for shorts, frays, or loose connections.
   3. Transmission for leaks: Inspect for signs of fluid loss.

Example: The F-150 had a corroded pin in the sensor connector.

Step 4: Test the Transmission Fluid Pressure Sensor
Tool: Multimeter.
Action:

1. 1. Measure voltage: Should vary with pressure changes (0.5-4.5V).
   2. Check resistance: Should be within specs (e.g., 300-600Ω, per manual).

Example: The Chrysler 300’s sensor showed no voltage change, indicating failure.

Step 5: Check for Internal Transmission Issues
Action:

1. 1. Perform a line pressure test using a pressure gauge (compare to manufacturer specs).
   2. Inspect the valve body for clogs or wear (may require transmission disassembly).

Example: The Odyssey’s valve body was clogged, causing low pressure readings.

Step 6: Verify the TCM/ECM
Action:

1. 1. Test with a known-good pressure sensor.
   2. Update TCM/ECM firmware if applicable.

Example: The Altima’s issue resolved after a TCM software update.

6. Solutions and Implementation

Apply these repairs based on diagnostic findings:

• Replace the Transmission Fluid Pressure Sensor
  Part: Chrysler OEM pressure sensor (~$100).
  Steps: Disconnect the connector, remove the sensor, install a new one, and clear codes.
  Example: The Chrysler 300’s shifting normalized after sensor replacement.
• Repair Wiring or Connectors
  Method: Clean corrosion or replace damaged connectors.
  Example: The F-150’s connector repair restored proper pressure readings.
• Service Transmission Fluid
  Part: Transmission fluid and filter (~$100).
  Steps: Drain old fluid, replace the filter, refill with new fluid, and clear codes.
  Example: The Camry’s pressure readings stabilized after a fluid change.
• Repair Internal Transmission Issues
  Part: Valve body repair kit (~$200).
  Example: The Odyssey’s valve body was cleaned, resolving pressure issues.
• Update TCM/ECM Software
  Tool: Dealer equipment.
  Example: The Altima’s P0841 cleared after the update.

7. Repair Costs and Precautions

• Transmission Fluid Pressure Sensor: $100-$250.
• Wiring Repair: $50-$150.
• Transmission Fluid Service: $100-$200.
• Valve Body Repair: $200-$500.
• TCM/ECM Update: $0-$150.

Precautions

• Use the correct type of transmission fluid as specified by the manufacturer.
• Ensure proper torque when installing the pressure sensor to avoid damage.

8. Preventive Measures

• Change transmission fluid and filter per the manufacturer’s schedule (e.g., every 60,000 miles).
• Inspect transmission wiring during routine maintenance.
• Address fluid leaks promptly to maintain proper pressure.
• Keep TCM/ECM software updated with manufacturer releases.

Summary

The P0841 trouble code indicates a range/performance issue with the transmission fluid pressure sensor/switch A circuit, often due to a faulty sensor, wiring issues, or internal transmission problems. Through detailed case studies—like the sensor failure in the Chrysler 300 or the low fluid in the Toyota Camry—and systematic diagnostics, this guide equips readers to diagnose and fix the problem efficiently. Addressing P0841 promptly ensures smooth transmission operation and prevents potential damage. For thorough diagnostics, tools like the CR MAX from www.icarsoft-us.com provide real-time data and code-clearing capabilities to maintain optimal vehicle operation.
