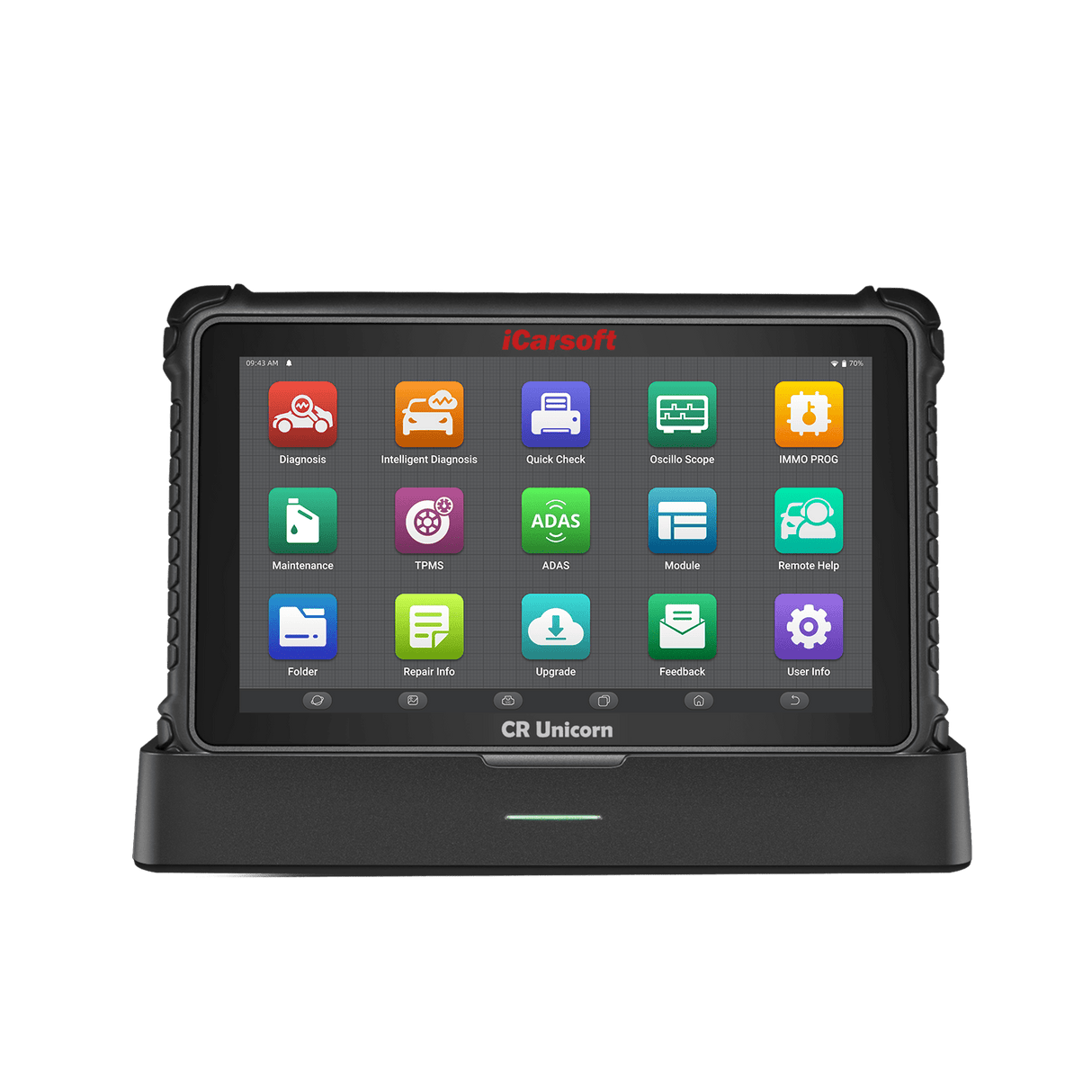

iCarsoft CR Unicorn OE-Level Professional Automotive Car Diagnostic Tool

Learn More

This warranty applies only to users and distributors who purchase iCarsoft products through normal procedures. Within one year from the date of delivery, iCarsoft warrants its electronic products for damages caused by defects in materials or workmanship. Damages to the equipment or components because of abuse, unauthorized modification, use for non - designed purposes, operation in a manner not specified in the instructions, etc. are not covered by this warranty. The compensation for dashboard damage caused by the defect of this equipment is limited to repair or replacement. iCarsoft does not bear any indirect and incidental losses. iCarsoft will judge the nature of the equipment damage according to its prescribed inspection methods. No agents, employees or business representatives of iCarsoft are authorized to make any confirmation, notice or promise related to iCarsoft products.

Products tutorial, videos, Q&A and coverage list are available on iCarsoft official website.

3-7 days delivered

1.Cutting-Edge Hardware for Best Diagnostics
The iCarsoft CR Unicorn is equipped with state-of-the-art hardware to deliver unparalleled diagnostic capabilities.
*MT8788 octa-core processor running at 2.0GHz, it boasts a robust 8GB RAM and 256GB ROM for seamless performance.
*A large 13.3-inch touchscreen with 1920x1080 resolution, ensuring clear and detailed visuals.

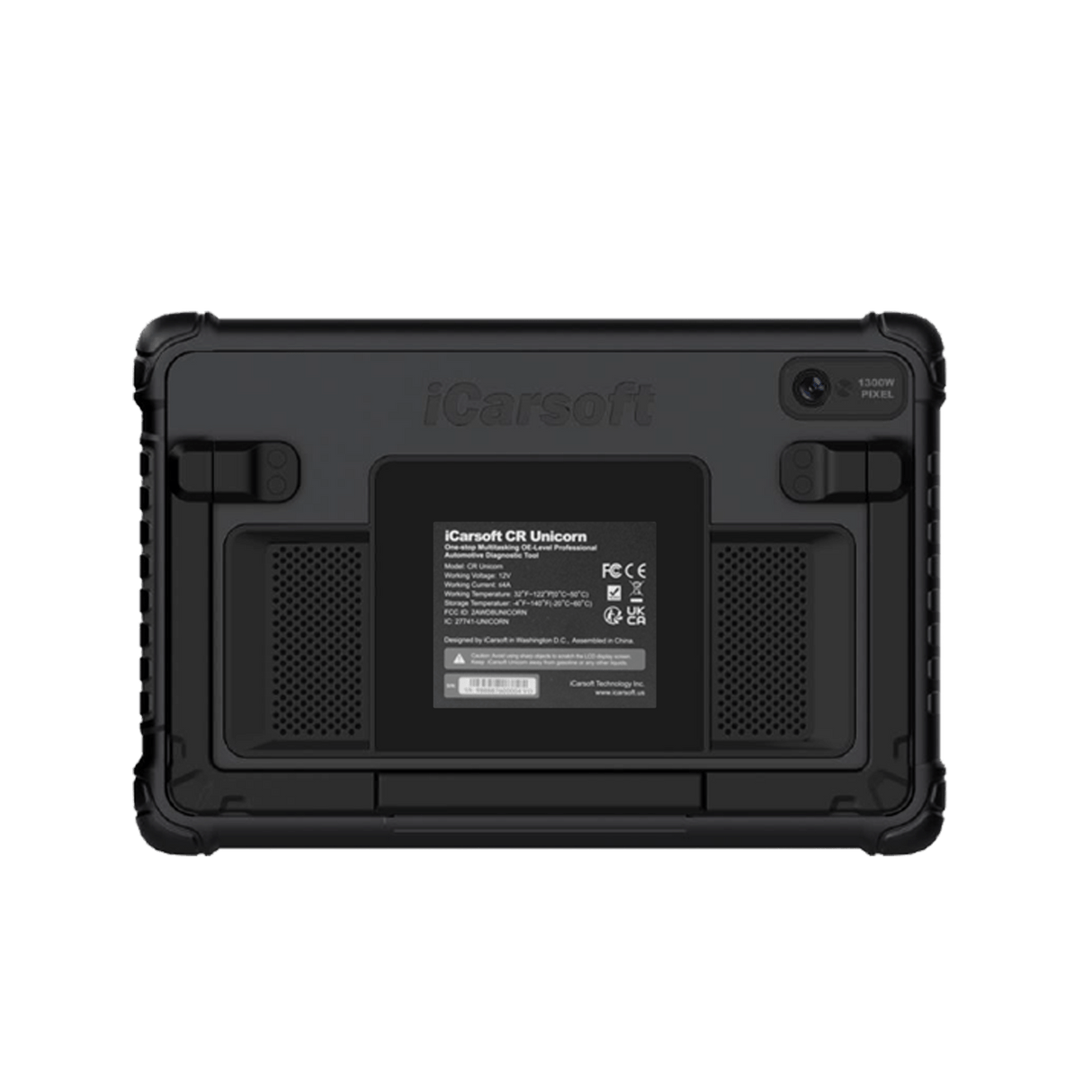

*A high-resolution 13MP rear camera aids in various diagnostic procedures.
*The CR Unicorn's durable construction includes a protective cover and adjustable kickstand for optimal usability.
*Battery Life: the long battery life enabled by the 18600mAh battery.
*Operating System: Android 9.0 for a familiar user interface.

2.Supports A Wide Range of Automotive Protocols
Covers both physical Layer、data link layers and Application Layer, ensuring compatibility with a vast array of vehicles. including:

*Physical Layer: K/L-Line, RS232, SAE J1708.
*Data Link Layer: Middlespeed CAN, Lowspeed and Singlewire CAN, Fault-Tolerant CAN, Highspeed CAN, ISO11898, SAE J1850 VPW, SAE J1850 PWM, ISO 9142, ISO 14230, J2534 Protocol.
*Application Layer: SAE J1939, TP1.6, TP2.0, CAN FD, DOIP.
*Other Protocols: GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, ISO 15765, SAE-J2610.

3.Cloud-Based Programming & Coding
The iCarsoft CR Unicorn All In One Car Scanner leverages cloud-based technology to provide advanced ECU programming and coding capabilities. Supporting key protocols like D-PDU, SAE J2534, and RP1210, it goes beyond traditional J2534 programming tools. This enables the CR Unicorn to effectively address a wide range of coding and programming needs, including:

*ECU Coding: Perform essential tasks like Teach-in procedures and component adaptations after repairs or replacements.
*Software Updates: Update existing software or firmware in vehicle ECUs.
*Drivability and Emissions Issues: Resolve software-related drivability and emissions issues.

4.Revolutionary Topology Module Mapping
The iCarsoft CR Unicorn incorporates a unique Topology Module Mapping design o give you the distinctive diagnostic results. This innovative feature:
*Visualizes System Interconnections: Displays the entire vehicle system through a comprehensive topology map, providing a clear visual representation of all modules and their interconnections.
*Pinpoints Fault Locations: Easily identifies faulty modules and their relationships within the system, facilitating faster and more accurate diagnosis.
*Color-Coded Status: Displays the status of each module using color-coding for easy identification of issues.
*Makes Supported: for BMW, for Mercedes-Benz,for Jaguar L-,for Rover, for Ford, for Volkswagen, for Audi, for GM, for Chrysler, for Volvo,for Nissan, for Honda, for Toyota,for Lexus, for Hyundai, for Kia.

Note: Topology Module Mapping is not universally supported for all vehicle brands and models. Please provide your vehicle's VIN for compatibility verification before placing an order.

5.TPMS Function
The iCarsoft CR Unicorn comes standard with the iCarsoft T-WAND 9000 wireless TPMS tool. This integrated solution enables:

*TPMS Activation & Programming: Supports TPMS activation and programming functions.
*TPMS Reset: Allows for easy tire pressure resetting after maintenance activities such as tire replacement, pressure adjustments, or sensor replacements.
*MIL Reset: Helps turn off the Tire Pressure Monitoring System (TPMS) malfunction indicator lamp after maintenance is performed.

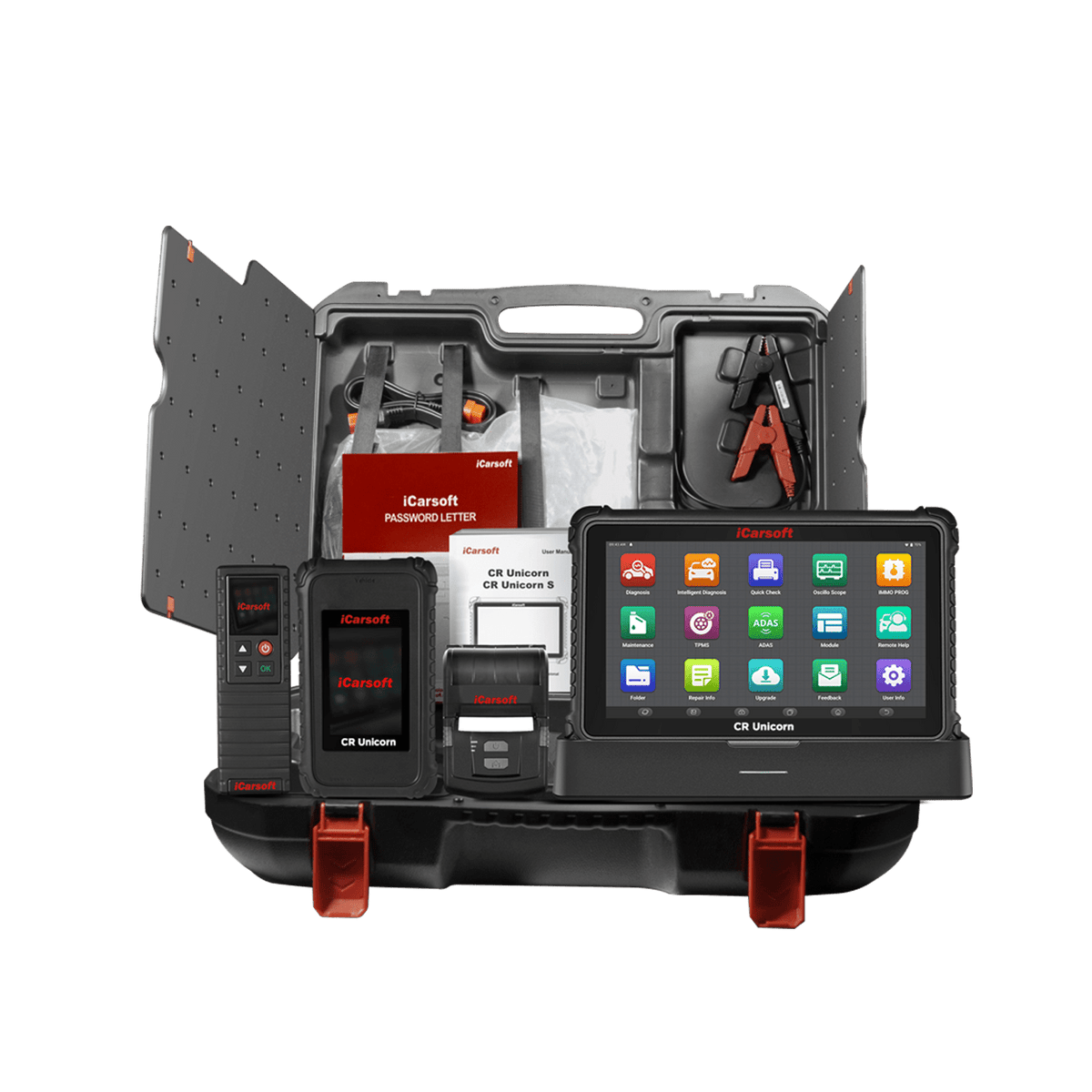

6.Comprehensive Standard Package (the text below for details)
The iCarsoft CR Unicorn All In One Car Scanner comes with a comprehensive standard package, designed to enhance your diagnostic capabilities. Included components are:
TPMS Programming Tool: Perform sensor activation, programming, and fault clearing for precise tire pressure monitoring.
*Thermal Printer: Generate instant diagnostic reports with the USB thermal printer.
*Battery Tester: Assess battery health, starting, and charging systems.
*Digital Inspection Camera: Visualize hard-to-reach areas for detailed inspections.
*Bluetooth VCI: Flexibly choose between Bluetooth or Wi-Fi communication modes.

7.Functions Description (the text below for details)
The iCarsoft CR Unicorn offers a comprehensive range of diagnostic and service functions, including 41 Functions:
*Maintenance & Reset: Covers essential maintenance procedures such as oil service resets, steering angle resets, battery matching, brake system resets, and more.
*Advanced Functions: Includes advanced features like engine power balance monitoring, high-voltage battery diagnostics, and intelligent cruise control system calibration.
*General Functions: Provides basic functionalities such as language change options.

8.Versatile Connectivity Options
The iCarsoft CR Unicorn offers a variety of communication methods to suit your needs:
*Wi-Fi: Connect wirelessly to a network using the WLAN 802.11b/g/n standard.
*VCI Bluetooth: Pair with your device via Bluetooth 5.1 for convenient, hands-free operation.
*Wired Connection: For optimal performance and stability, especially when performing online programming.

9.Optional Enhancements for Advanced Diagnostics（Optional purchase）
The iCarsoft CR Unicorn can be further enhanced with these optional configurations:
*Scope Box: A high-performance oscilloscope with 100MHz bandwidth, 4 channels, and 1GSa/s sampling rate, ideal for in-depth electrical diagnostics on various vehicle types, including gasoline, diesel, hybrid, and electric vehicles.
*IM2000 PRO Immobilizer Programmer: Enables advanced key programming and immobilizer system functions, including key chip reading/writing, EEPROM chip reading/writing, and MCU chip reading/writing. Essential for tasks like key replacement and immobilizer system repairs.
*CR ADAS A9000 Portable ADAS Calibration Tool: Provides accurate and efficient calibration of advanced driver-assistance systems (ADAS) with millimeter accuracy and an easy-to-use step-by-step guide.

10.Active Test/Bi-Directional Control
The iCarsoft CR Unicorn offers bi-directional control capabilities, allowing technicians to send commands to the vehicle's ECU to activate a wide range of components and subsystems. This includes:Fuel pump,Valves,Injectors,Solenoids,Relays,AC clutch,Wipers,Windows,Doors,Sunroofs,etc.

By activating these components, technicians can perform various tests and diagnostics to identify and troubleshoot vehicle issues.

11.One-Click Updates and Expert Support
*One-Click Updates: Keep your diagnostic tool up-to-date with the latest software（Free upgrades for the first 2 years）, client, and firmware through our convenient online update system.
*Dedicated Support: Our team of professional technicians is committed to providing timely and effective support. Should you encounter any issues, simply report them to us, and we'll promptly address them.

12.Comprehensive Data Management
The iCarsoft CR Unicorn All In One Car Scanner offers advanced data management capabilities, including:
*Data Stream Sampling: Records and saves data stream samples for in-depth analysis.
*File Creation: Creates diagnostic reports based on vehicle VIN and check time, including diagnostic data, data stream records, and images.
*Smart Detection: Automatically recognizes vehicle information and generates reports upon vehicle connection.
This comprehensive data management system allows for efficient data analysis and record-keeping, enhancing diagnostic accuracy and workflow efficiency.
