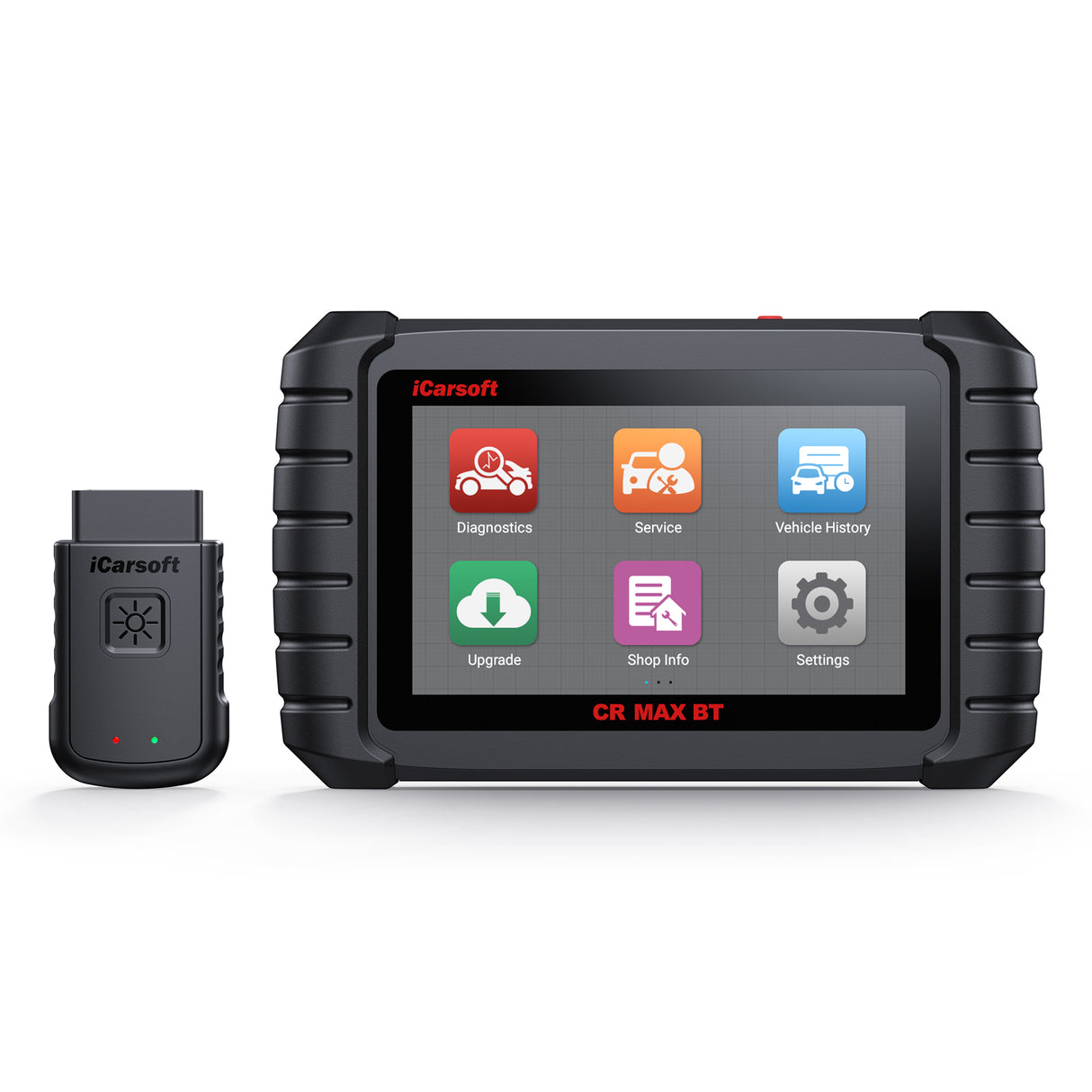

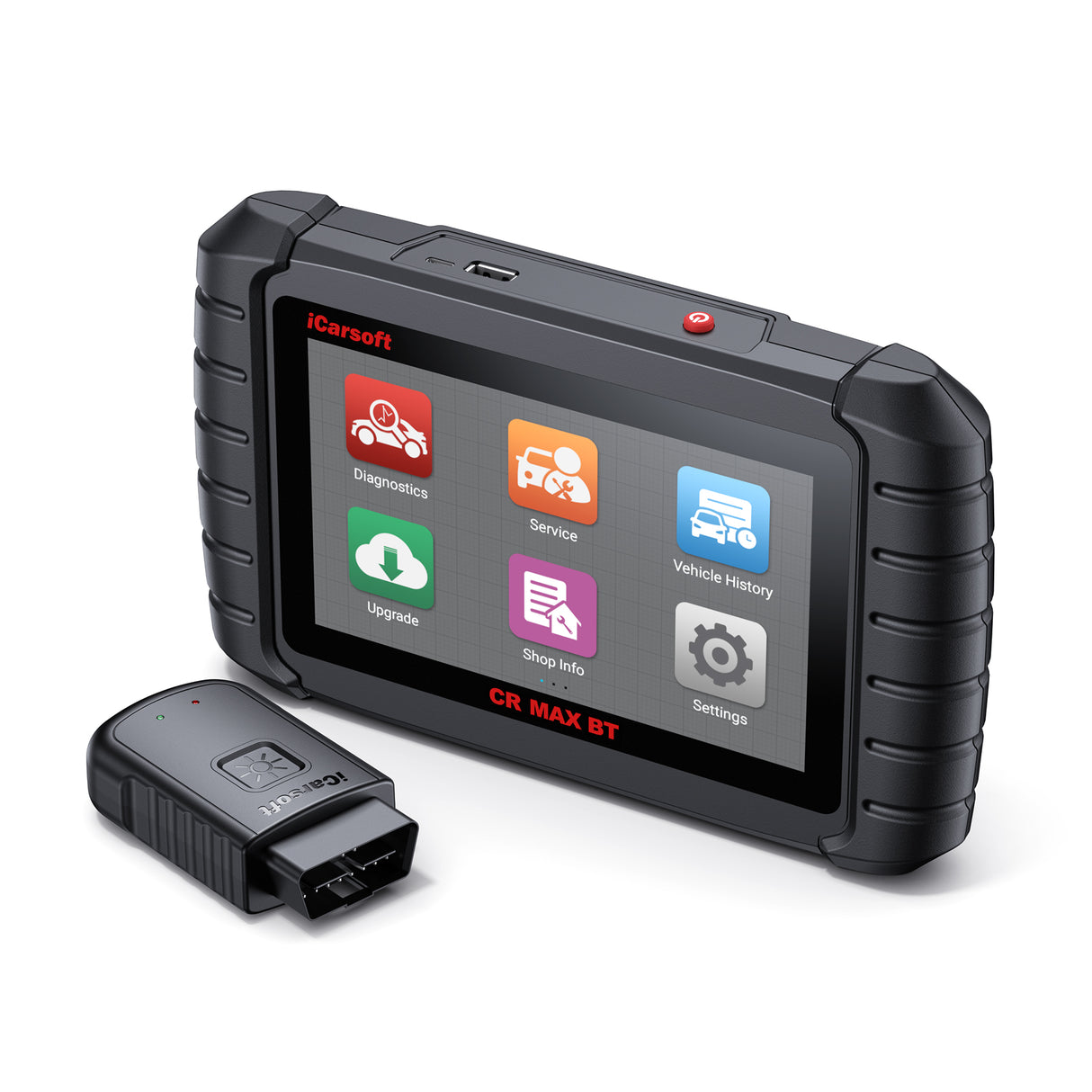

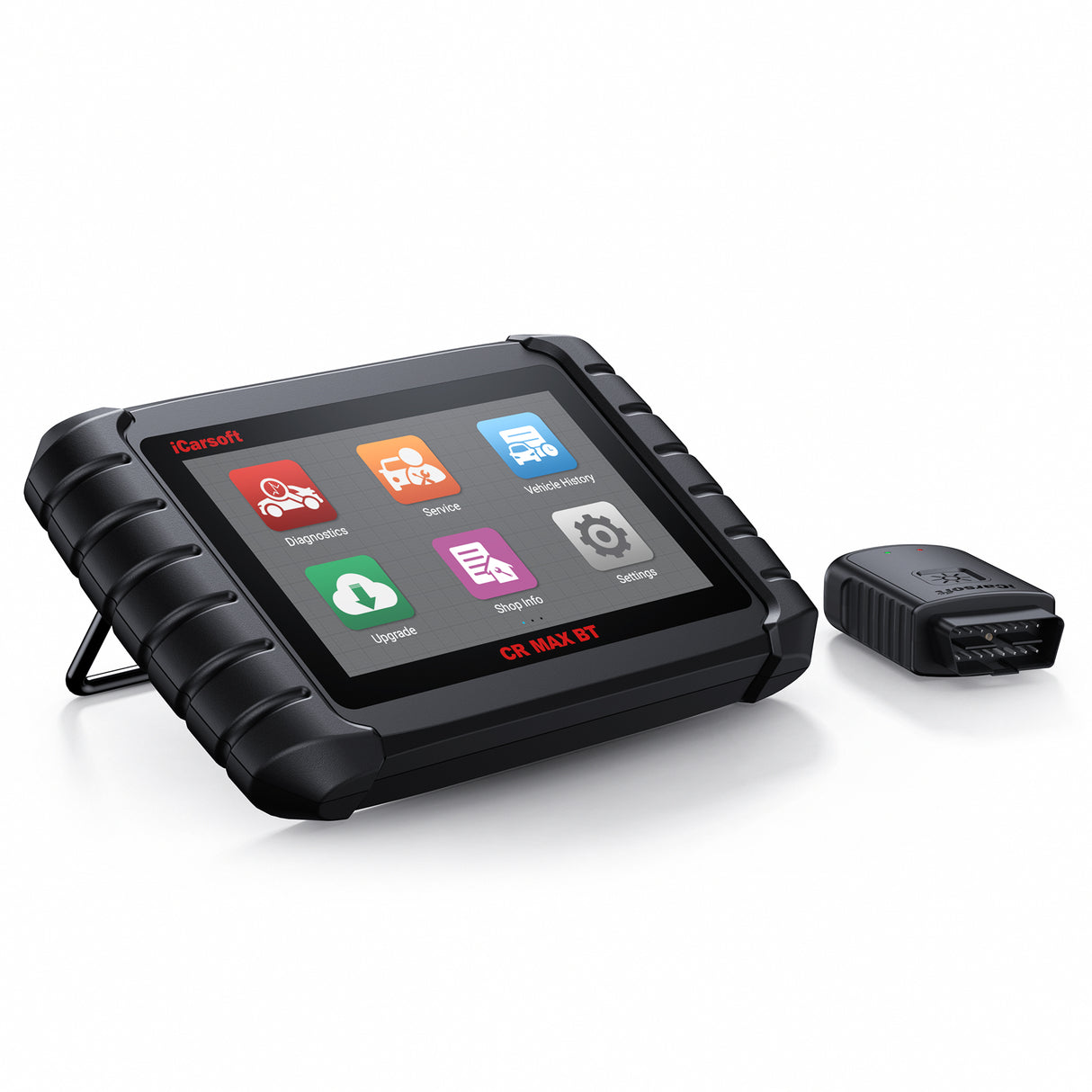

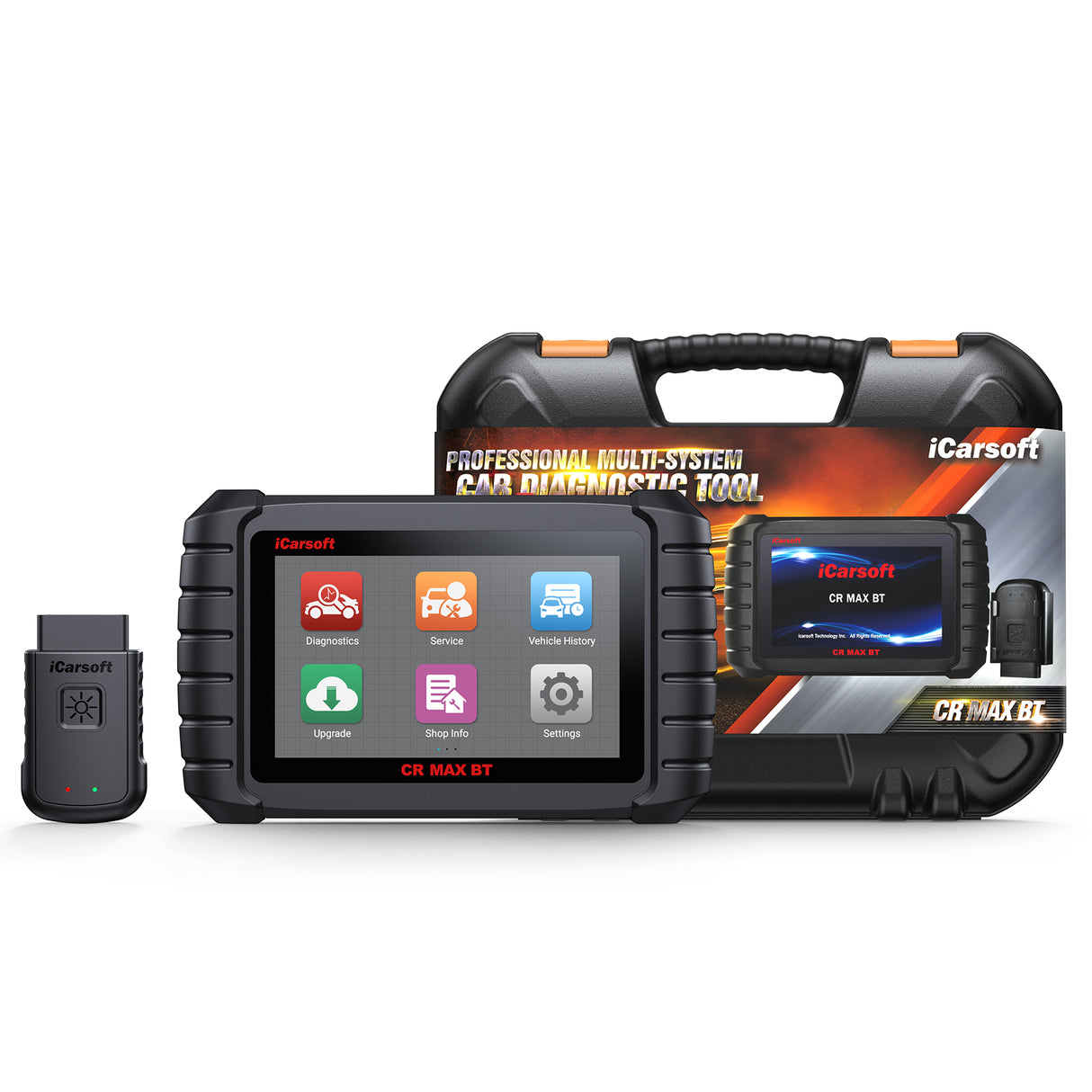

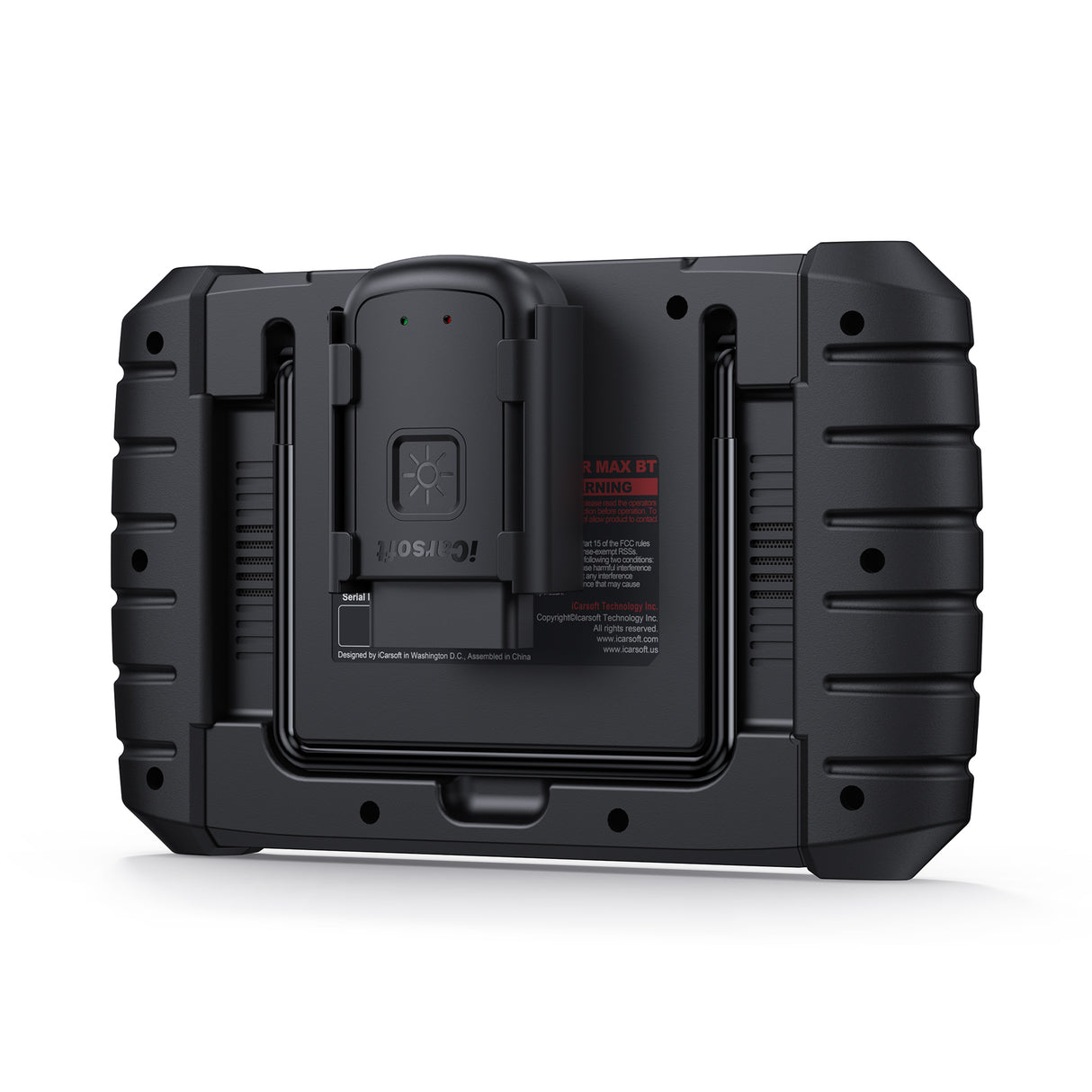

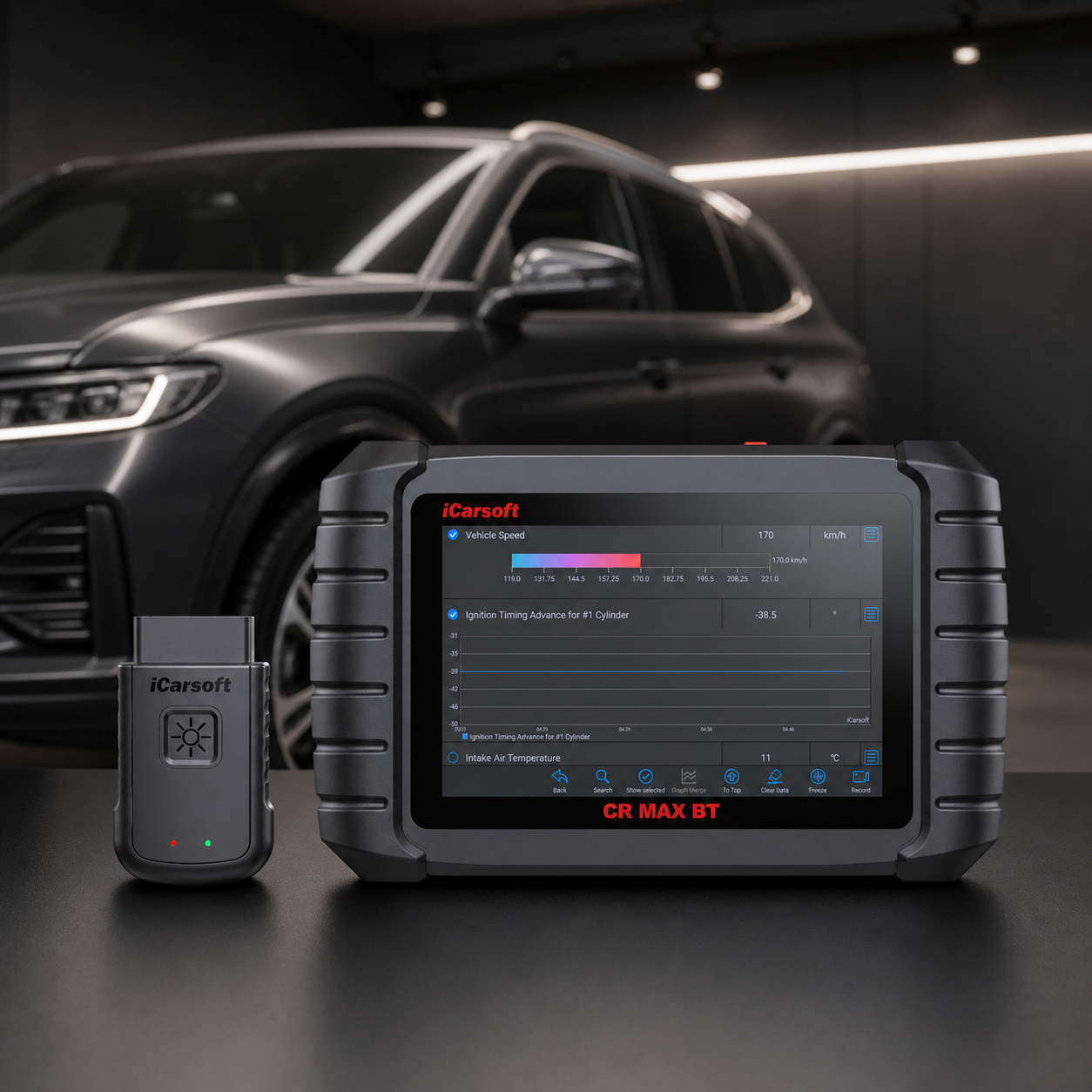

iCarsoft CR MAX BT Bluetooth Scan Tool

Name: iCarsoft CR MAX BT Bluetooth Scan Tool
Brand: iCarsoft
Price: 409.95 USD
Availability: InStock

$409.95 ~~$455.50~~

Shipping calculated at checkout.

1. Latest Bluetooth Technology: The wireless Bluetooth connection offers the freedom to move around the vehicle with a diagnostic range of 13 feet, removing the constraints of wired connections.

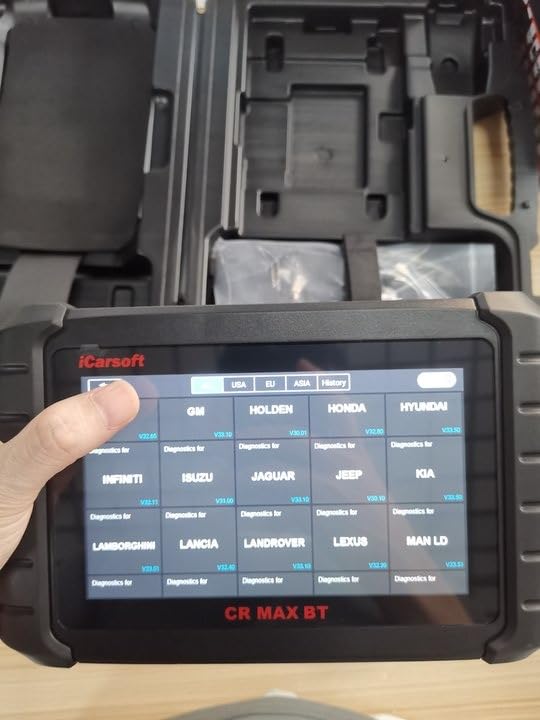

2. Multi-Brand Vehicle Diagnostics: Compatible with OEM brands from the Americas, Asia, and Europe for both petrol and diesel vehicles, adhering to OBD II/EOBD standards and covering all vehicles available.

3. Comprehensive System Diagnostics: Capable of reading and clearing trouble codes across all systems, including the engine, transmission, ABS, and airbags.

4. Extensive Features: Includes code reading and clearing, I/M readiness, live data, freeze frame, vehicle information, monitor tests, onboard monitor, evap system tests, and O2 sensor tests.

5. 49+ Reset Functions: Provides complete ECU diagnostics with 49+ reset functions, such as ABS reset, oil reset, EPB reset, throttle reset, injector reset, steering angle sensor reset, brake reset, battery management system reset, and more.

6. Over 38 Brand-Specific Services: Offers more than 38 specialized services designed for specific car brands to meet unique diagnostic requirements.

7. Bidirectional Control & Actuation Testing: Provides OE-level bidirectional diagnostics, module resets, control unit testing, relearning, quick tests, live data streaming, and more.

8. Automatic VIN Scanning: Quickly detects vehicle information and creates a vehicle health report for straightforward diagnostics and repairs.

9. Integrated DTC Library: Includes a built-in DTC library for quick reference of trouble codes and their definitions.

10. Real-Time Data Visualization: Shows up to four live data graphs at once with four display options (analog, text, graph, and progress bar) for enhanced data interpretation.

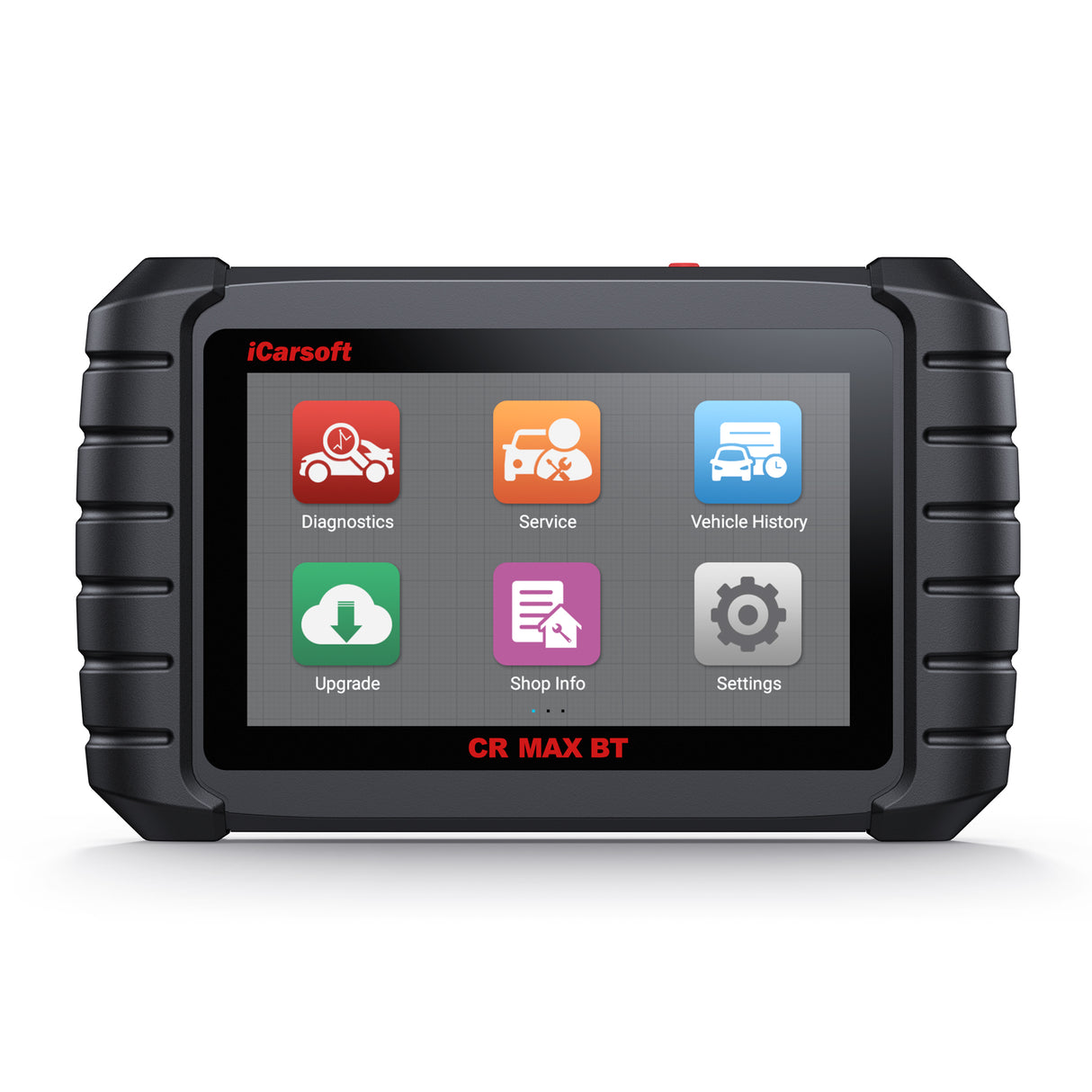

11. 7-Inch HD Touchscreen: Features a 7-inch LCD touchscreen with a resolution of 1024 x 600 for easy viewing and operation.

12. Dynamic Waveform Visualization: Presents dynamic waveforms of vehicle data, offering quick and clear insights into error code information.

13. Report Printing Capability: After diagnostics, it can create and print vehicle health reports for documentation and sharing purposes.

Return Policy

Learn More

Delivery and Shipping

3-7 days delivered

Operating System

ANDROID 8.1.0
Processor

Wuad-core 1.3 GHZ
ROM

16GB
Display

7-INCH LCD Capactive Touch Screen With 1024X600 Resolution
Connectivity

MINI USB 2.0/ USB2.0/ WI-FI / BLUETOOTH/OBD II
Body Color

Black
Audio Output

OUTPUT: BUZZER & SPEAKER
Input

NA
Power and Battery

3.7 V/5000MAH Lithium-Polymer Battery
Charges VIA 5 VDC Power Supply

0BD DLC Voltage Range: 9-18V
Tested Battery Life

Around 5 Hours Of Continuous use
Battery Charger

5V/2A
Power Consumption

500MA(LCD ON with Default Brightness,WI-FI ON)@3.7 V
Temp

0 ~ 40°C (32 ~104°F)
Storage Temp

-20 ~ 70° C(-4 ~158°F)
Humidity

5%-95% Non-Condensing
Dimensions(W*H*D)

40.0mm*150.0mm*35.0mm
Net Weight

750g

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

PRODUCT COMPARE

A table comparing the facets of 4 products
Facet	iCarsoft CR MAX BT Bluetooth Scan Tool View details	iCarsoft CR MAX OBDII Scanner For Most Car Brands View details	iCarsoft CR Pro+ Universal Diagnostic Tool View details	iCarsoft CR Eagle View details
Price
Price	$409.95 ~~$455.50~~	$369.95 ~~$411.09~~	$299.95 ~~$333.29~~	$1,099.00 ~~$1,221.19~~
Display
Display	7-INCH LCD Capactive Touch Screen With 1024X600 Resolution	7-INCH LCD Capactive Touch Screen With 1024X600 Resolution	4.3" TFT LCD, 800*480 Pixels	10.1-INCH LCD Capactive Touch Screen With 1280x800 Resolution
System
System	ANDROID 8.1.0	ANDROID 8.1.0	\	Android 10.0
RAM
RAM	1 GB	1 GB	\	4 GB
ROM
ROM	32 GB	32 GB	\	128 GB
Connection
Connection	MINI USB 2.0/ USB2.0/ WI-FI / BLUETOOTH/OBD II	MINI USB 2.0/ USB2.0/ WI-FI / BLUETOOTH/OBD II	-	USB Host /USB Type C /Wi-Fi (2.4/5 GHz) /Bluetooth
Function
Function	1.Touch Screen 2.Wifi-Internet 3.One-Key Upgrade 4.One-Key Feedback 5.Full OBDII/EOBD Function 6.Battery Voltage Test 7.Read and Clear DTC 8.Read Ecu Information 9.Read Live Data 10.Read and Clear Freeze Frame 11.Auto VIN Identify 12.Actuation/Bi-directional Test	1.Touch Screen 2.Wifi-Internet 3.One-Key Upgrade 4.One-Key Feedback 5.Full OBDII/EOBD Function 6.Battery Voltage Test 7.Read and Clear DTC 8.Read Ecu Information 9.Read Live Data 10.Read and Clear Freeze Frame 11.Auto VIN Identify 12.Actuation/Bi-directional Test	1.Full OBDII/EOBD Function 2.Battery Voltage Test 3.Read and Clear DTC 4.Read Ecu Information 5.Read Live Data 6.Read and Clear Freeze Frame 7.Auto VIN Identify 8.Actuation/Bi-directional Test	1.Touch Screen 2.Wifi-Internet 3.One-Key Upgrade 4.One-Key Feedback 5.Full OBDII/EOBD Function 6.Battery Voltage Test 7.Read and Clear DTC 8.Read Ecu Information 9.Read Live Data 10.Read and Clear Freeze Frame 11.Auto VIN Identify 12.Actuation/Bi-directional Test 13.TPMS sensors programming
Service
Service	49+	49+	49+	49+
Accessories

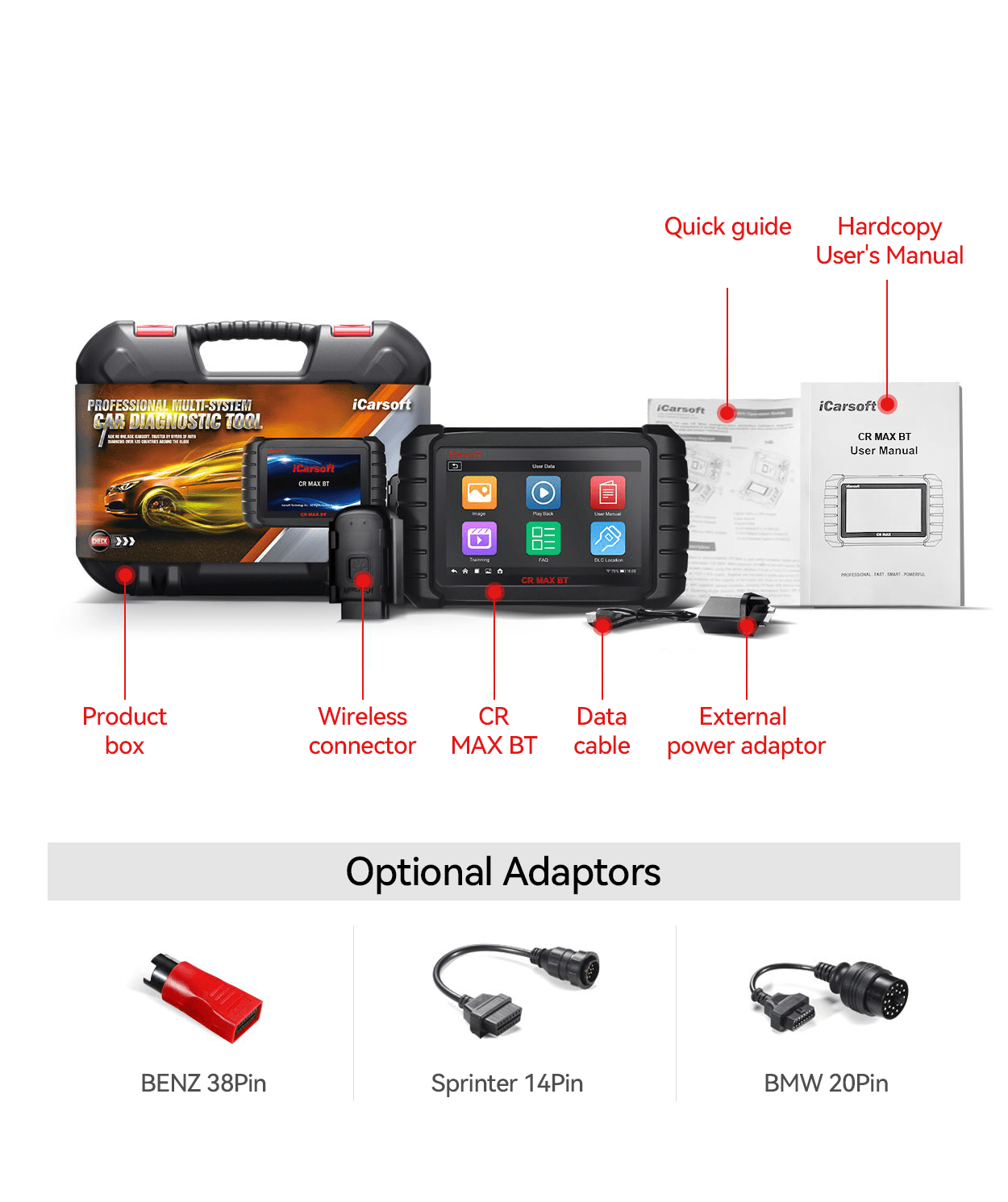

Accessories	1.Mini USB Cable 2.USB External Power Adapter 3.User Manual 4.Quick Guide 5.Bluetooth VCI	1.Mini USB Cable 2.USB External Power Adapter 3.User Manual 4.Quick Guide	1.User’s manual 2.Data Cable 3.OBDII Main Cable 4.Storage Card	1.USB Cable 2.External Power Adapter 3.VCI Extended Cable 4.AI-4 5.B-20 6.BZ-14 7.BZ-38 8.Video scope and USB adapter cable (Optional) 9.Cleaning cloth 10.User Manual 11.Quick Guide 12.Packing list;

You may also want to know?

Is the upgrade free of charge?

Yes, iCarsoft support free update all the time.

Which vehicles can iCarsoft's tool diagnosis?

Supports most vehicles with OBD II standardization
Such as：
Vehicles sold in the U.S. after 1996
Vehicles sold in the Europe after 2001
Vehicles sold in the Japan after 2002

Can the diagnostic tool still be used if the vehicle cannot start?

If the vehicle battery is charged, you can diagnoise it, but not all features. We propose that you charge the battery and start the car.

What kind of tool is suitable for me?

This depends on your needs; you can check our upcoming blog updates or ask us for more details.

Can iCarsoft tools do oil reset?

Except for MASERATI, the majority of our products support most brands of vehicle oil resets; however, some, like the i820 and i800 Plus, only offer OBDII functions. Therefore, please select the tool that will actually assist you in performing an oil reset.
